We are Manufacturer, Supplier, Exporter of Paperless Chart Recorders, Smart Recorders, Paperless Recorders, Digital Paperless Recorders, Paperless Graphic Recorders and our set up is situated in Pune, Maharashtra, India.
SMARTRECORD is perfect replacement for conventional Paper recorders. This reduces your cost incurred for Charts and Pens. All the charts are digitized so there is no need of maintain chart papers for longer duration for audits. Data plotted on charts is tamper-proof, so no worries of forged data. Product comes with Color display of different Sizes. Display shows data plotting in exactly same form as of conventional circular chart recorders. In addition to chart display, tabular viewer with respect to date time and process value for each channel is available on display.

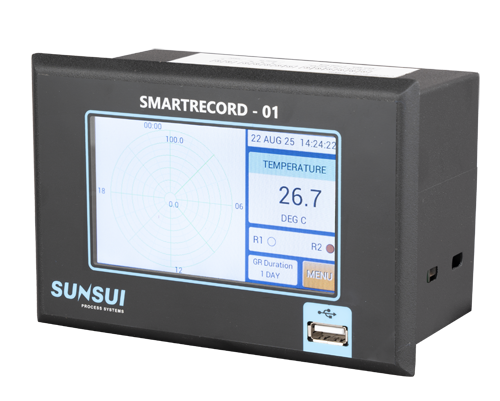

SMARTRECORD-01 is new generation product for replacement of existing Paper circular chart recorders. This product has color graphical TFT display for presentation of circular chart There is no need to maintain charts and papers, retrieve exactly similar to paperyou can chart chart in PDF file via USB port.
In Graphical output format, user the Graph Duration & graph Range i.e user getcan select can the output in zoomed in condition, if desired.
Key Features
- Live circular chart of process value similar to paper chart
- Inbuilt memory to store Historical charts of 60 days
- User selectable input type makes it easy to record any process parameter e.g. Temperature, Humidity, Pressure, Flow, etc.
- Easy retrieval of data in Graphical (PDF) format.
- Selectable report chart and duration range even when live chart has different chart range.
- Optional ON/Off Controller with two relay outputs.
Technical Specifications
| Description | SMARTRECORD-01 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input (Factory Settable) |
Factory settable INPUTS:
|
||||||||||||
| Display | 4.3 Inch Color Graphical Display with resistive touch Screen for user interaction. | ||||||||||||
| Graph Duration | User Selectable - 1 Hour / 4 Hour / 8 Hour / 12 Hour / 1 Day / 7 Day | ||||||||||||
| Graph Range | User Selectable | ||||||||||||
| Data Storage | Graphical data for 30 days is stored in internal memory. | ||||||||||||
| Data Retrieval |
Data can be retrieved on USB pen drive. Graphical Data: Graph Output in .pdf format with Selectable Graph Range & selectable Graph duration. i.e User can view the graph in zoomed format. |
||||||||||||
| Alarm | User settable Alarm point. Alarm indication available on display screen. Optional Relay output available. |
||||||||||||
| Supply Voltage | 12 VDC, 350 mAmp | ||||||||||||
| ON / Off Controller Optional | On / off controller with setpoints and Delay | ||||||||||||
| Size | 82mm X 134 mm x 90 mm Panel mounting | ||||||||||||
| Certification | CE Certified |

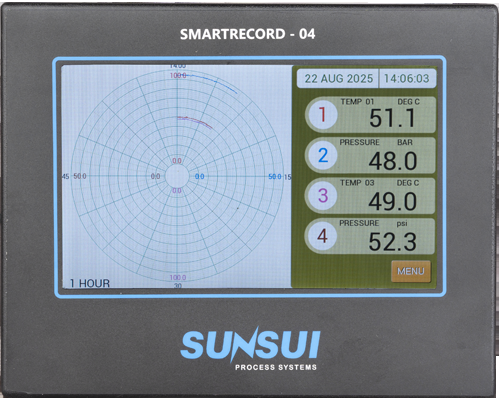

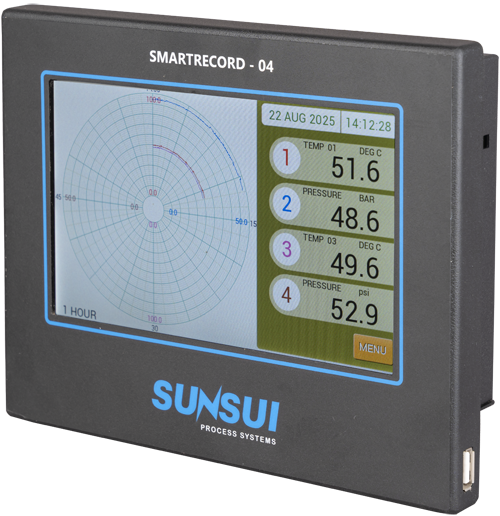

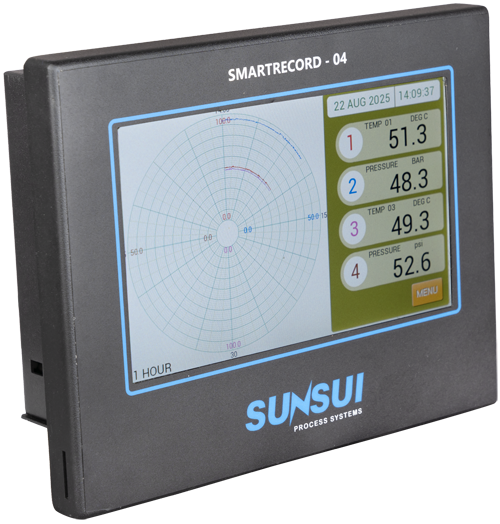

SMARTRECORD-04 is new generation product for replacement of existing Paper circular chart recorders. This product has color graphical TFT display for presentation of circular chart. There is no need to maintain charts and papers, you can retrieve chart exactly similarto paper chart in PDF file via USB port.
In Graphical output format, user can select the Graph Duration & graph Range i.e user can get the output in zoomed in condition, if desired.
In Numerical output format, data along with date and time, with one minute interval will be available in csv format & optionally in PDF format.
Key Features
- Live circular chart of process value similar to paper chart.
- Inbuilt memory to store Historical charts of 30 days.
- User selectable input type makes it easy to record any process parameter e.g. Temperature, Humidity, Pressure, Flow, etc.
- Easy retrieval of data in Graphical (PDF) and Numerical (CSV or optionally PDF) format.
- Selectable report chart and duration range even when live chart has different chart range.
- Optional ON / Off Controller with two relay outputs.
Technical Specifications
| Description | SMARTRECORD - 04 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input |
Four Channels user settable :
|
||||||||||||
| Display | 7 Inch Colour Graphical Display with resistive touch Screen for user interaction. | ||||||||||||
| Graph Duration | User Selectable - 1 Hour / 3 Hour / 8 Hour / 12 Hour / 1 Day / 7 Day | ||||||||||||
| Graph Range | User Selectable | ||||||||||||
| Data Storage | Graphical & Numerical data for 30 days is stored in internal memory (Numerical values are stored per minute) | ||||||||||||
| Data Retrieval |
Data can be retrieved on USB pen drive. Graphical Data: Graph Output in .pdf format with Selectable Graph Range & selectable Graph duration. i.e User can view the graph in zoomed format. Numerical Data: Numerical Data Output in CSV format with one minute interval option. Numerical data can be backed up in .pdf format. |
||||||||||||
| Alarm | User settable Alarm point. Alarm indication available on display screen. Optional Relay output available. |
||||||||||||
| Supply Voltage | 12 VDC, 350 mAmp | ||||||||||||
| Cutout Size | 134mm X 134mm x 100 mm Standard Panel mounting | ||||||||||||
| Certification | CE Certified |
